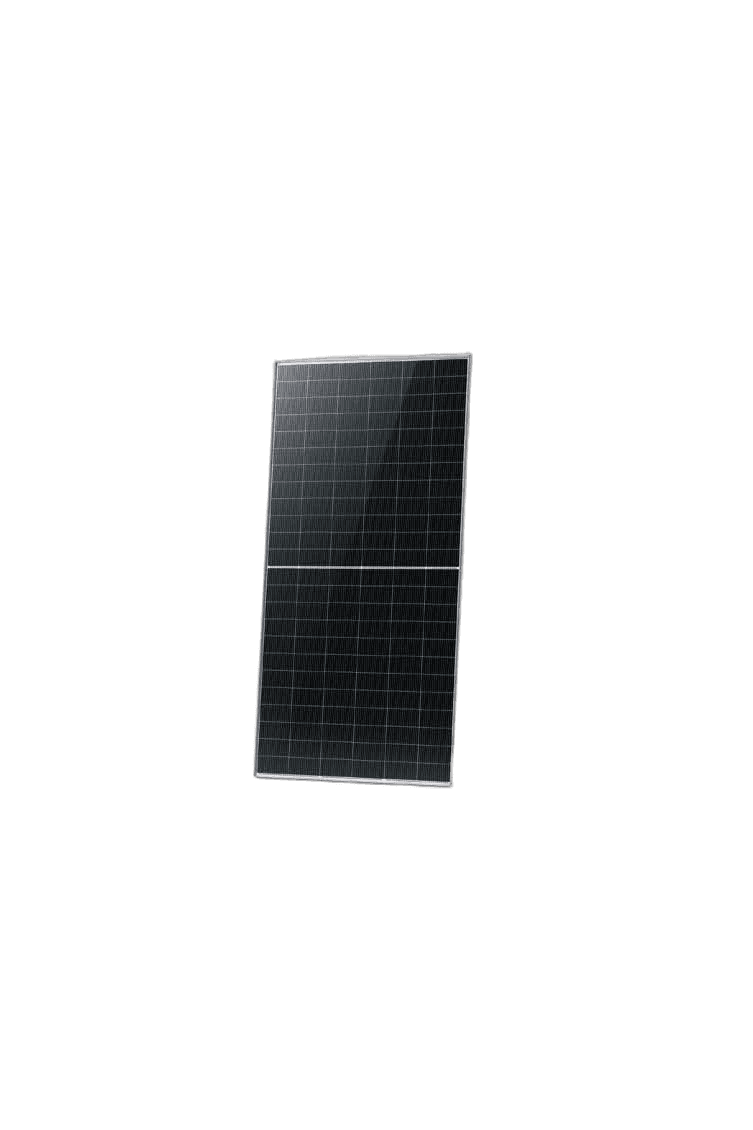

Jinko Solar JKM545N-54QL6-DV-F1 N-type bifacial solar panel

Jinko N-Type Bifacial 545 W

A dual-glass N-type panel sized for real rooftops — steady output through high heat and weak light, backed by three decades of guaranteed power. This model: Module Efficiency 24.27 refer to the corresponding detailed module drawings.%, Maximum Power (Pmax) 545W.

  • Maximum Power (Pmax): 545W
  • Module Efficiency: 24.27 refer to the corresponding detailed module drawings.%
AED 300incl. VAT

In stock

Full SpecificationsDownload datasheet (PDF)

Jinko N-Type Bifacial 545 W features

Still working in weak light

The enhanced N-type cell structure keeps the panel producing at dawn, at dusk and under cloud, not only at midday.

Hot afternoons cost less

An optimised temperature coefficient of -0.26 %/°C and certified operation from -40 °C to +70 °C keep summer losses small.

Glass on both faces

A 2.0 mm anti-reflective front and a 2.0 mm heat-strengthened back replace the plastic backsheet, with encapsulation proven against PID, LID/LeTID and UV ageing.

Rated for storm loads

Certified to 5400 Pa of pressure on the front and 2400 Pa on the rear, with an IP68 junction box and an anodised aluminium frame.

About the Jinko N-Type Bifacial 545 W

Built on Jinko's N-type TOPCon cell platform, this mono-facial module is sealed between two panes of glass — anti-reflective in front, heat-strengthened behind — instead of a plastic backsheet. Its compact 54-cell frame stays under 28 kg, easy to lift onto villa and warehouse roofs, and it is rated for 5400 Pa of front load and certified against salt mist, ammonia and blowing sand — the conditions coastal and desert sites actually deliver. This model: Module Efficiency 24.27 refer to the corresponding detailed module drawings.%, Maximum Power (Pmax) 545W.

Specifications last updated 20 August 2026

Jinko N-Type Bifacial 545 W full specifications

Electrical

Maximum Power - Pmax545 W
Maximum Power Voltage - Vmp34.70 V
Maximum Power Current - Imp15.71 A
Short-circuit Current - Isc16.42 A
Open-circuit Voltage - Voc40.46 V
Module Efficiency STC24.27 refer to the corresponding detailed module drawings. %

Mechanical

Cell TypeN- type Mono-crystalline
Number of Cells216 (54×4)
Dimensions1980×1134×30 mm
Weight27.5 kg
Front Glass2.0 mm, Anti-reflection Coating
Back Glass2.0 mm, Heat Strengthened Glass
FrameAnodized Aluminium Alloy
Junction BoxIP68 Rated
Connector TypeJK03M/JK03M2/Others*
Output Cables (Including Connector)860±1mm
Power Sorting0 ~ + 3 %
Temperature Coefficient of Pmax-0.26 %/°C
Temperature Coefficient of Voc-0.24 %/°C
Operating Temperature- 40 °C to +70 °C*
Maximum Series Fuse Rating30 A
Temperature Coefficient of Isc0.046 %/°C

Environmental

IEC Fire TypeClass C
Maximum System Voltage1500 V DC (IEC)
Protection ClassClass II

Certifications

  • IEC
  • TUV
  • CE
